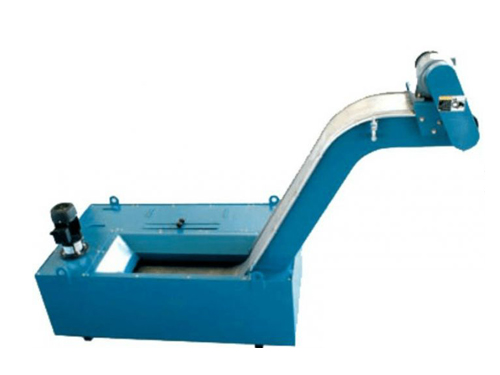

Filter stripper

Filter stripper is a special type of machine in the catalogue of stripper.

The basic characteristics of

Scraper width diversification, provides a flexible and effective application of collocation, strong combination of scraper, high strength, cooperate with accurate, stable and quiet, torsion limit set, effectively reduce the damage caused by improper operation.

The main material is welded with integral joint, without leakage.

Filter with slit plate and self - cleaning brush.The two sides of the scraper are equipped with a special two-way connecting chain. The height and distribution spacing of the scraper can be designed randomly. The transmission is stable, the structure is compact and the strength is good.

The transportation speed choice range is wide, the work efficiency is high, the effective discharge chip width is diversified, may provide the sufficient choice range.

According to user needs and stencil recoil, scraps, eddy current separator, the oil-water separator and so on to form integrated filtering system to improve product surface machining precision, save cooling fluid, reduce the labor intensity of workers, is a kind of auxiliary device is widely used machine tool.After connecting with the machine tool as a whole, it can work synchronously or separately.

Adopt integral section, combination connection, integrated application, ensure smooth lubrication and durability.

The main material of the scraper stripper is welded by A3 cold plate with thickness required by the customer. The whole material is combined without leakage.Filter with slit plate and self - cleaning brush.The chain is made of international 31.75mm or 50.8mm two-way connection.The conveying scraper is made of 1Crl8 stainless steel and imported polyurethane rubber strips.The thickness of the scraper depends on the requirement.The chain is connected with the scraper (stainless steel self-locking screw) for easy replacement.The bottom of the scraping plate is made of 1Crl8 stainless steel (non-magnetic) plate with the thickness required by the customer, which serves as the barrier between the magnetic plate and the scraping plate.The scraper type chip removal machine produced by runze, Texas, USES the motor of the Taiwan original "yongkun" brand motor speed reducer, the power depends on the situation of the chip removal machine.Sprocket to be used 6 teeth, 45# steel forgings quenched processing, four pieces one set.The wheel shaft is made of # 45 steel.Chip ejector adopts UCT national standard bearing and shaft seat connection.

Scope of application

The filter descaling machine is the most suitable type for removing and delivering copper, aluminum, cast iron, etc.
